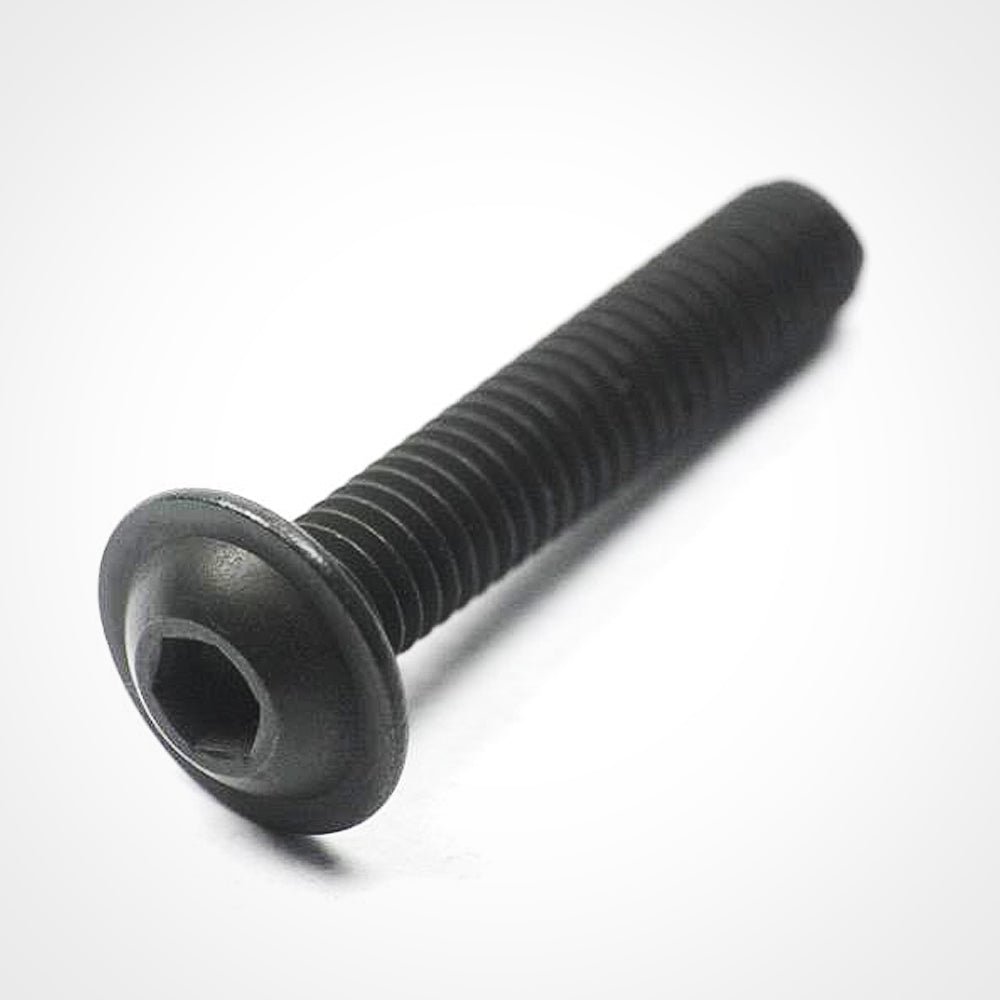

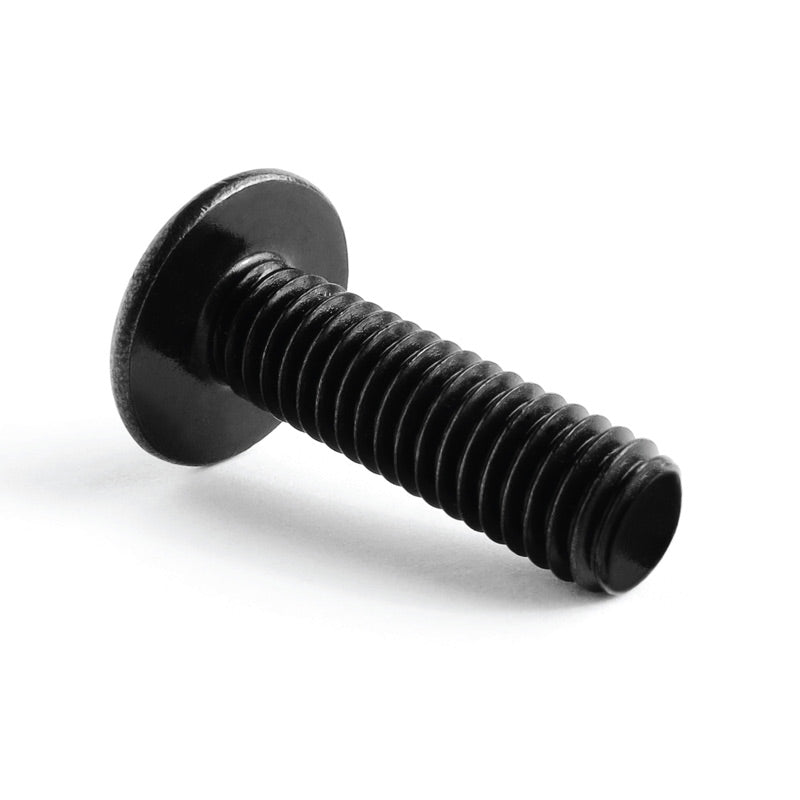

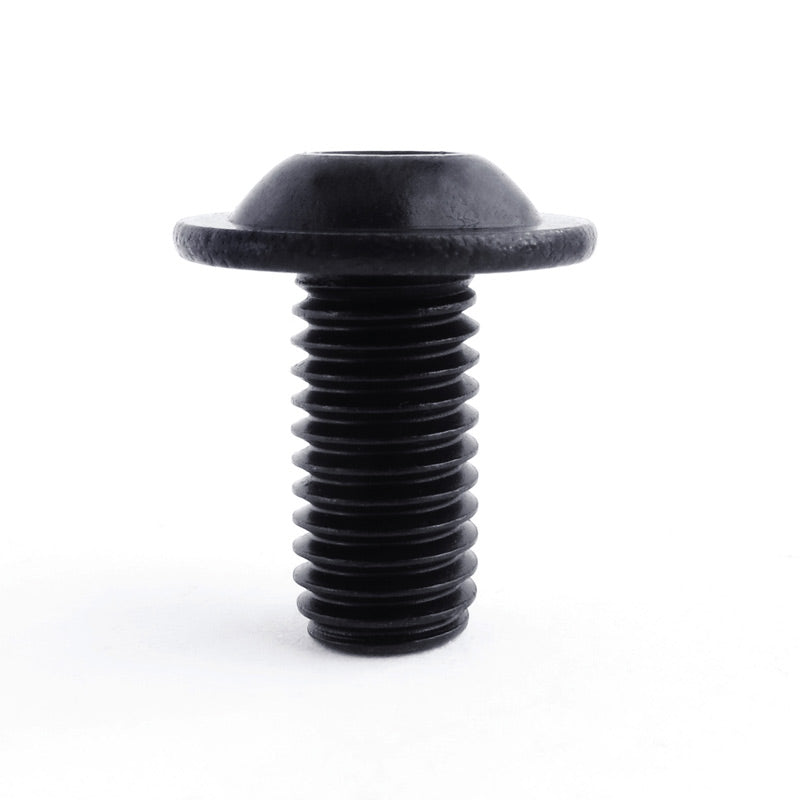

Black Stainless Steel Button Flange
Black Stainless Steel Button Flange
Regular price
£2.22
Regular price
Sale price
£2.22
Shipping calculated at checkout.
Couldn't load pickup availability

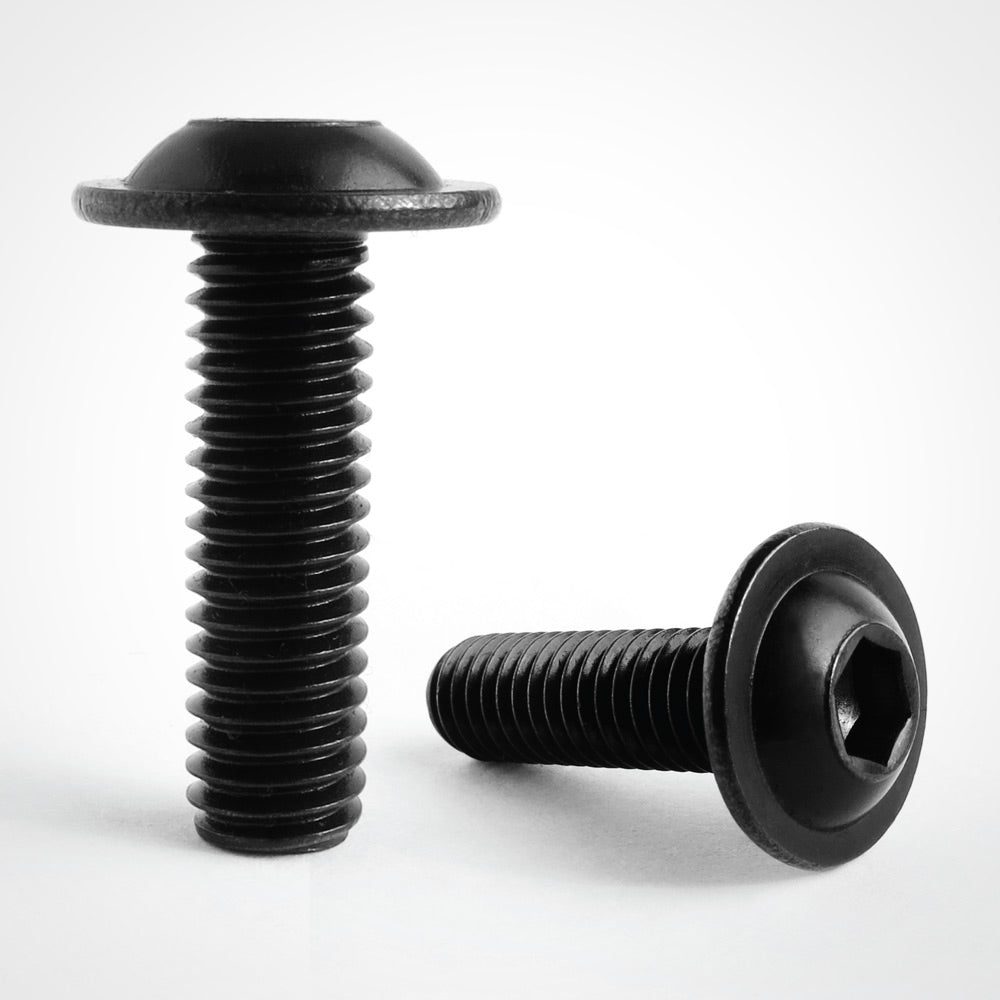

Socket Button Flange Screws ISO 7380-2
A2-70 Black Stainless Steel
Key Features
✔️ Conformity Certificate supplied as standard.
✔️ Our famous CB10 blacking process.
✔️ Free tech support, call & speak to one of our experts.
Carbolts Precision Technical Information
| Diameter (d) | Pitch | dk (max) | k (max) | s (nom) | t (min) | c |
|---|---|---|---|---|---|---|
| M2 | 0.40 | 4.0 | 1.23 | 1.3 | * | * |
| M2.5 | 0.45 | 5.5 | 1.43 | 1.5 | * | * |
| M3 | 0.50 | 7.0 | 1.70 | 2.0 | 1.05 | 0.7 |
| M4 | 0.70 | 9.4 | 2.20 | 2.5 | 1.3 | 0.8 |
| M5 | 0.80 | 11.6 | 2.80 | 3.0 | 1.56 | 1.0 |
| M6 | 1.00 | 13.6 | 3.30 | 4.0 | 2.08 | 1.1 |
| M8 | 1.25 | 17.8 | 4.40 | 5.0 | 2.6 | 1.5 |
| M10 | 1.50 | 22.0 | 5.50 | 6.0 | 3.12 | 1.7 |
| M12 | 1.75 | 25 | 7.00 | 8.0 | 4.16 | 2.4 |
| Thread Size | Length (L) | Standard | Material |
|---|---|---|---|
| M4 | 4 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 5 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 6 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 8 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 10 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 12 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 14 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 16 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 18 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 20 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 22 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 25 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 30 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 35 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 40 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 45 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 50 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 55 mm | ISO 7380-2 | A2 Stainless Steel |
| M4 | 60 mm | ISO 7380-2 | A2 Stainless Steel |
| Thread Size | Length (L) | Standard | Material |
|---|---|---|---|
| M5 | 30 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 35 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 40 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 45 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 50 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 55 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 60 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 65 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 70 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 75 mm | ISO 7380-2 | A2 Stainless Steel |
| M5 | 80 mm | ISO 7380-2 | A2 Stainless Steel |
