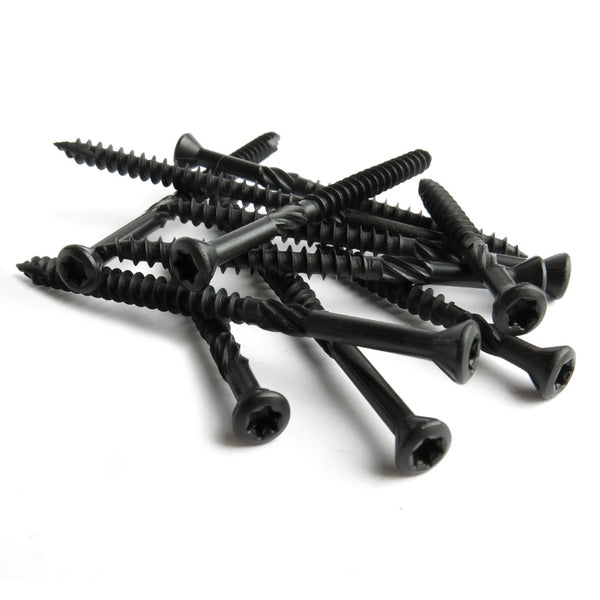

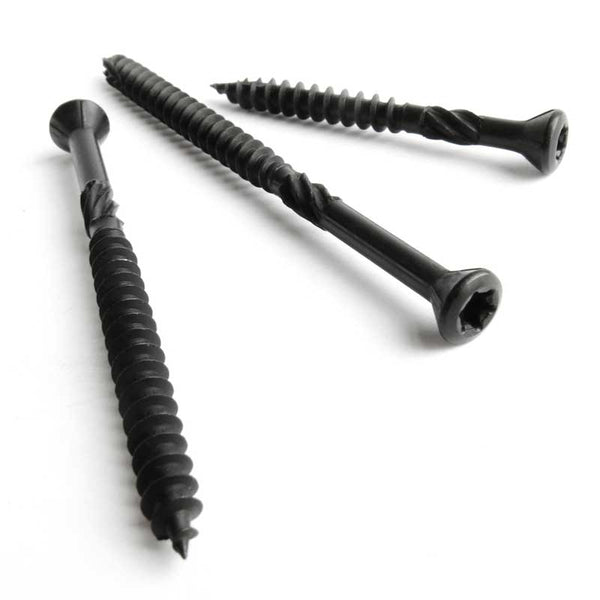

Black Stainless Steel Decking Screws Type 2

carbolts.co.uk SKU: DECKTYPE2_3X30BLKA2Q10WEB1

£2.70

Available Now!

Please select the size and pack quantity from the drop-down below.

Black Stainless Steel Decking Screws Type 2

Silver or Black Stainless Steel

Six Lobe Decking Screws, A2 Stainless Steel

six lobe torx head decking screw technical drawing

 Diameter L B dk (Max)
k (Max) Fh (Max) ds drive
4.0mm 40mm 24mm 7.1mm 4.4mm 8.0mm 3.0mm TX20
5.0mm 50mm 30mm 7.8mm 4.9mm 7.9mm 3.7mm TX25
5.0mm 60mm 36mm 7.8mm 4.9mm 7.9mm 3.7mm TX25
5.0mm 70mm 42mm 7.8mm 4.9mm 7.9mm 3.7mm TX25
5.0mm 80mm 48mm 7.8mm 4.9mm 7.9mm 3.7mm TX25
