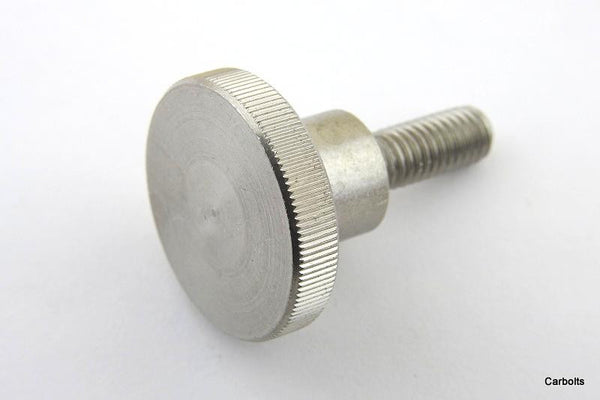

Stainless Steel Knurled Thumb Screws
Machine Turned Stainless Steel Knurled Thumb Screws
DIN 464
| Diameter d | Thread Pitch | dk | h | k | ds |
| M3 | 0.50 | 11.35-12.35 | 7.5 | 2.5 | 5.70-6.00 |
| M4 | 0.70 | 15.65-16.35 | 9.5 | 3.5 | 7.64-8.00 |
| M5 | 0.80 | 19.58-20.42 | 11.5 | 4.0 | 9.64-10.00 |
| M6 | 1.00 | 23.59-24.42 | 15.0 | 5.0 | 11.57-16.00 |
