Stainless Steel Non Serrated Flange Nuts
Stainless Steel Non Serrated Flange Nuts

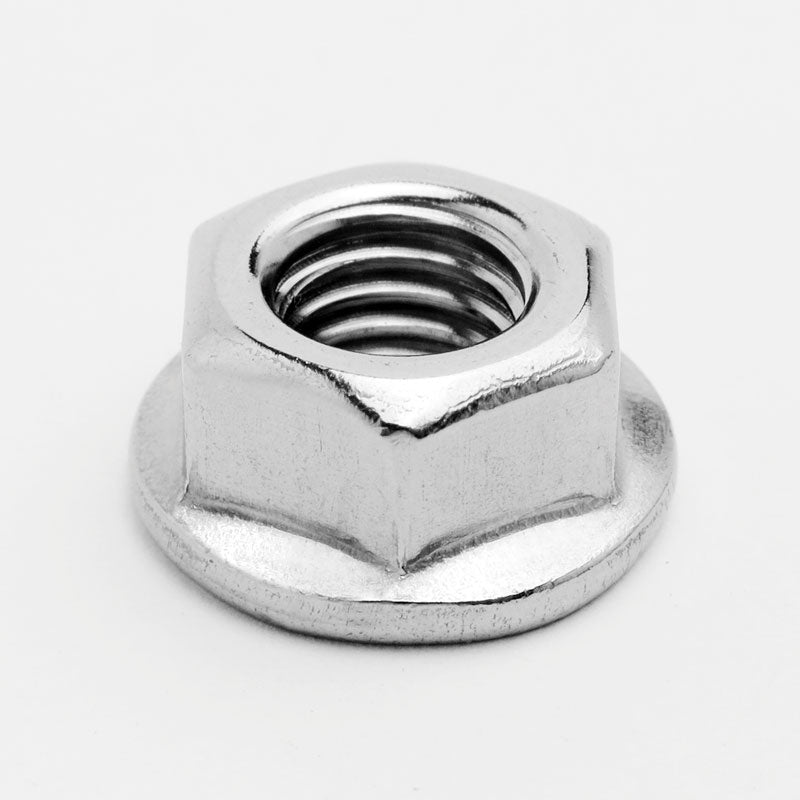

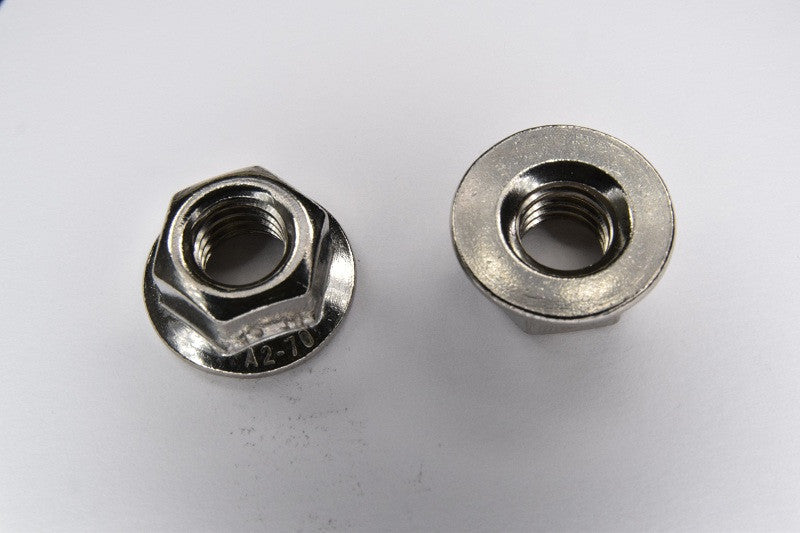

A2-70 Stainless Steel Non Serrated Flange Nuts
DIN 6923
| Size (d) | Thread Pitch | Flange Outside Diameter (dc) | Spanner Size (s) | Height (m) |
| M4 | 0.7mm | 10mm | 7mm | 4.6mm |
| M5 | 0.8mm | 11mm | 8mm | 4.9mm |
| M6 | 1.0mm | 14mm | 10mm | 6mm |
| M8 | 1.25mm | 18mm | 13mm | 8mm |
| M10 | 1.5mm | 21mm | 15mm | 10mm |
