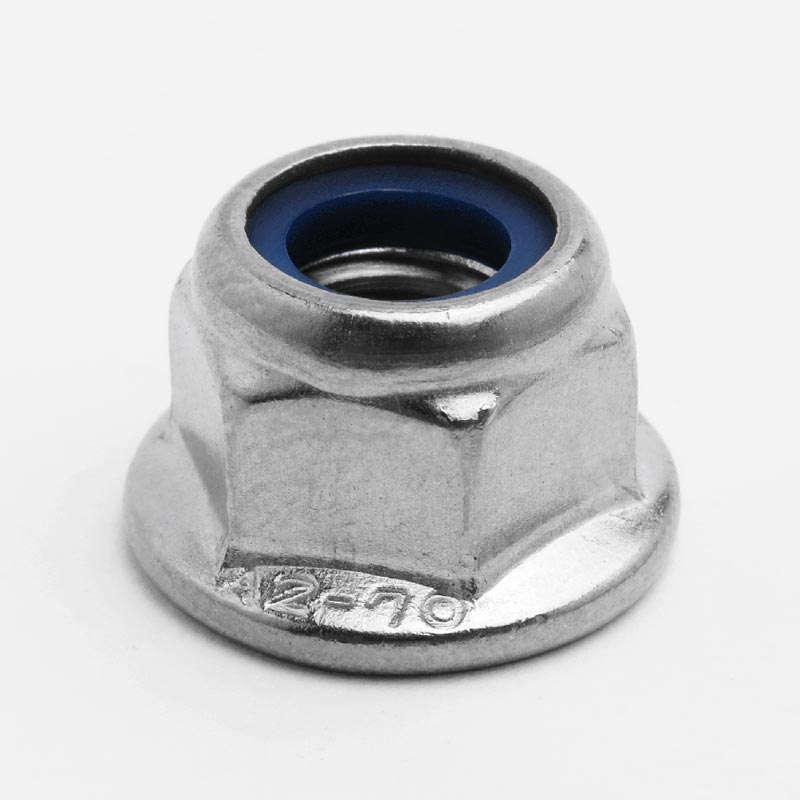

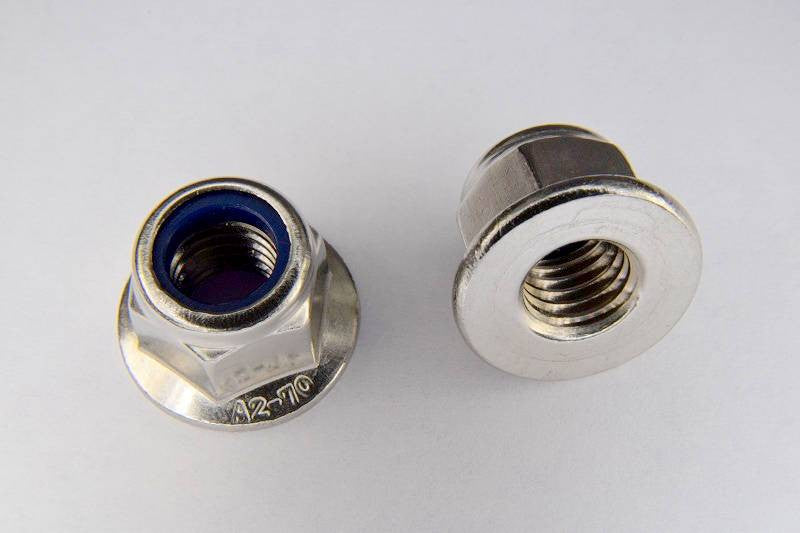

Stainless Steel Non Serrated Flange Nyloc Nuts
Stainless Steel Non Serrated Flange Nyloc Nuts
A2-70 Stainless Steel Non Serrated Flange Nuts
DIN 6926
| Size (d) | Thread Pitch | Flange Outside Diameter (dc) | Spanner Size (s) | Height (m) |
| M4 | 0.7mm | 10mm | 7mm | 6.0mm |
| M5 | 0.8mm | 11.8mm | 8mm | 7.1mm |
| M6 | 1.0mm | 14.2mm | 10mm | 9.1mm |
| M8 | 1.25mm | 18mm | 13mm | 11.1mm |
| M10 | 1.5mm | 21.8mm | 15mm | 13.5mm |
