Stainless Steel Socket Button
Stainless Steel Socket Button
Regular price
£26.13
Regular price
Sale price
£26.13
Couldn't load pickup availability

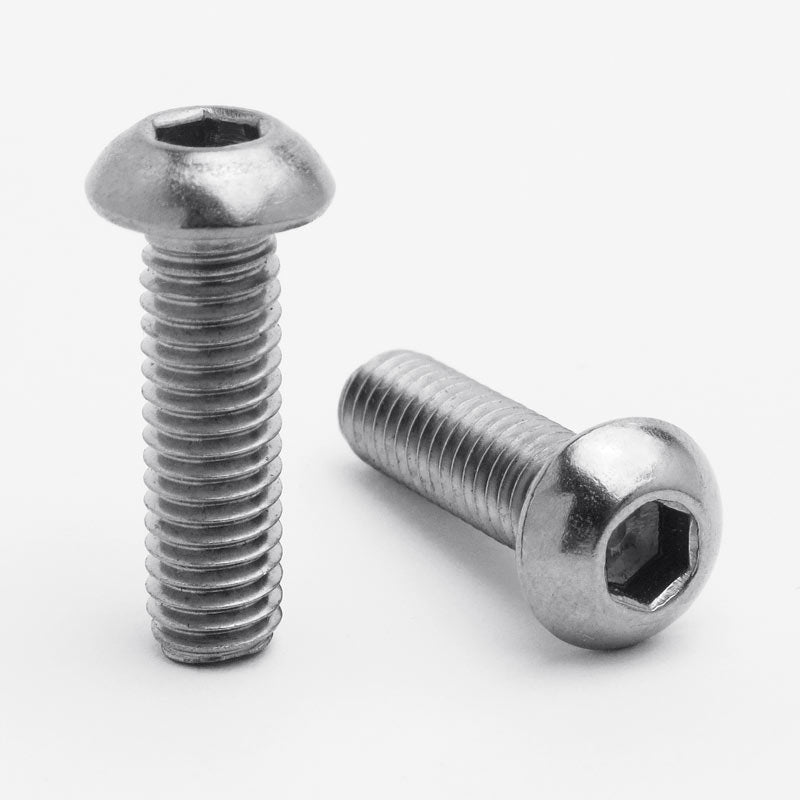

Socket Button Screws ISO 7380-1
A2-70 Stainless Steel
Key Features
✔️ Conformity Certificate supplied as standard.
✔️ Corrosion resistant, durable & low maintenance.
✔️ Free tech support, call & speak to one of our experts.
Further Information
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) |
|---|---|---|---|---|---|
| M2 | 0.40 | 3.50-3.30 | 1.30-1.10 | 1.3 | 0.80 |
| M3 | 0.50 | 5.70-5.40 | 1.65-1.40 | 2.0 | 1.04 |
| M4 | 0.70 | 7.60-7.24 | 2.20-1.95 | 2.5 | 1.30 |
| M5 | 0.80 | 9.50-9.14 | 2.75-2.50 | 3.0 | 1.56 |
| M6 | 1.00 | 10.50-10.07 | 3.30-3.00 | 4.0 | 2.08 |
| M8 | 1.25 | 14.00-13.57 | 4.40-4.10 | 5.0 | 2.60 |
| M10 | 1.50 | 17.50-17.07 | 5.50-5.20 | 6.0 | 3.12 |
| M12 | 1.75 | 21.00-20.46 | 6.60-6.24 | 8.0 | 4.16 |
Sizes in the table are in millimetres.
What is a Socket Button Head Screw?
A socket button head screw is a type of machine screw with a low-profile, dome-shaped head and an internal hexagonal (allen key) socket drive. The rounded head profile sits closer to the surface than a standard cap head screw, giving a cleaner, more streamlined appearance - making these screws the go-to choice for any application where a clean looking finish is key.
Manufactured to ISO 7380-1
Carbolts stainless socket button head screws are produced using A2 grade stainless steel (grade 304).
Technical Standard - ISO 7380-1
ISO 7380-1 specifies a hexagon socket button head screw with metric threads. Sizes from M2 to M12. The standard defines all dimensional characteristics including head diameter, head height, socket size, socket depth, thread pitch and thread tolerances.
ISO 7380-1 covers the plain button head. For the flanged variant with an integrated flange collar that provides additional surface contact, see ISO 7380-2
Typical applications: Feature fixings, black metalwork, furniture hardware, retail and exhibition fit-out - where a premium black aesthetic is desired. These are just a few application, there are many more.
Material: A2-70 stainless steel (grade 304)
Standard: ISO 7380-1
Drive: Internal hex (allen key / hex socket)
'M' Sizes: M2, M3, M4, M5, M6, M8, M10, M12
Thread: Metric pitch.
