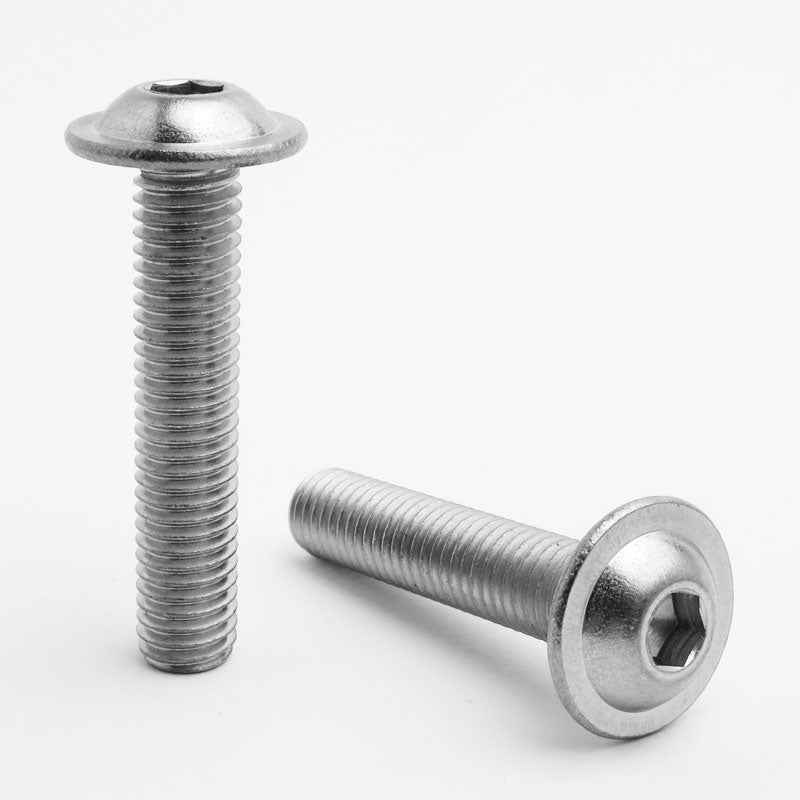

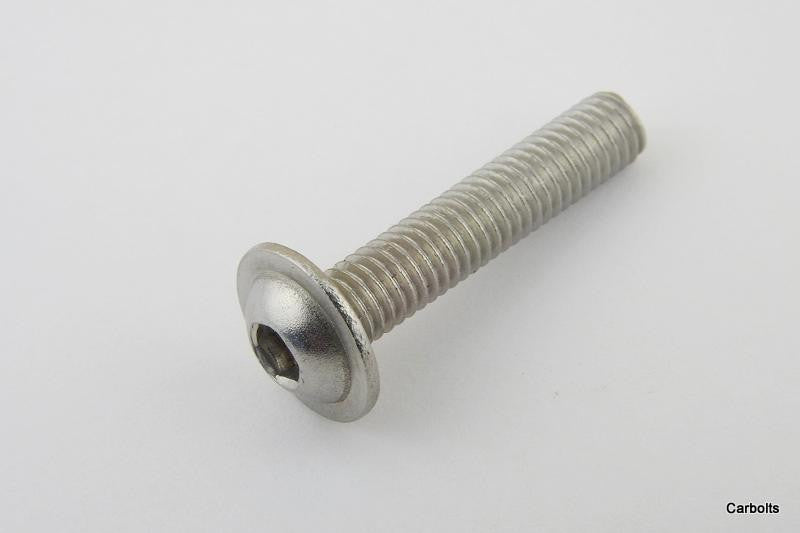

Stainless Steel Socket Button Flange
Stainless Steel Socket Button Flange
Regular price
£1.89
Regular price
Sale price
£1.89
Couldn't load pickup availability
Socket Button Flange Screws ISO 7380-2
A2-70 Stainless Steel
Key Features
✔️ Conformity Certificate supplied as standard.
✔️ Corrosion resistant, durable & low maintenance.
✔️ Free tech support, call & speak to one of our experts.
Carbolts Precision Technical Information
| Diameter (d) | Pitch | dk (max) | k (max) | s (nom) | t (min) | c |
|---|---|---|---|---|---|---|
| M2 | 0.40 | 4.0 | 1.23 | 1.3 | * | * |
| M2.5 | 0.45 | 5.5 | 1.43 | 1.5 | * | * |
| M3 | 0.50 | 7.0 | 1.70 | 2.0 | 1.05 | 0.7 |
| M4 | 0.70 | 9.4 | 2.20 | 2.5 | 1.3 | 0.8 |
| M5 | 0.80 | 11.6 | 2.80 | 3.0 | 1.56 | 1.0 |
| M6 | 1.00 | 13.6 | 3.30 | 4.0 | 2.08 | 1.1 |
| M8 | 1.25 | 17.8 | 4.40 | 5.0 | 2.6 | 1.5 |
| M10 | 1.50 | 22.0 | 5.50 | 6.0 | 3.12 | 1.7 |
| M12 | 1.75 | 25 | 7.00 | 8.0 | 4.16 | 2.4 |
